Specifications
- for 0.6" (15.2 mm) or 0.7" (17.8 mm) cable bolts
- maximum load 25 ton @ 10,000 psi (225 kN @ 70 MPa)
- stroke = 3" (75 mm)
- double acting hollow core ram
- aluminum construction - weighs only 10 lbs (4.5 kg)
- requires double acting hydraulic pump or hand pump
- L = 11.75" (300 mm)
- D = 4" (102 mm)

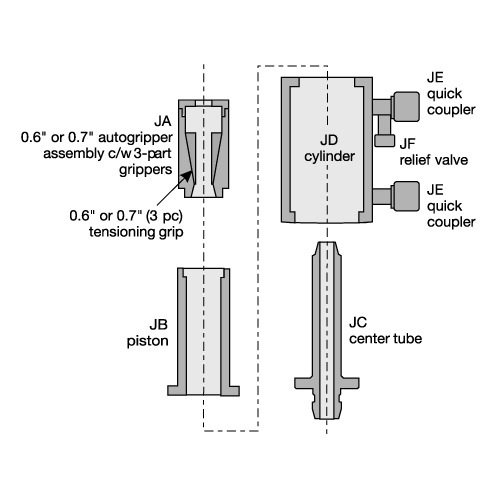

Parts
1) Regularly ensure autogripper is screwed hand tight into the hollow core ram.2) Ensure the cable strand is free from mud and dust. Also regularly clean the autogripper wedges.
Seal Kit includes:
1 - 2.25" AN wiper1 - 2.25" x 2.75" x 3.75" rod seal
1 - 1.25" x 1.75" x 0.250" rod seal
1 - 2.31" O-ring
1 - 2.875" T-seal
