Eyebolts, Scaling Bars & Utility Hangers

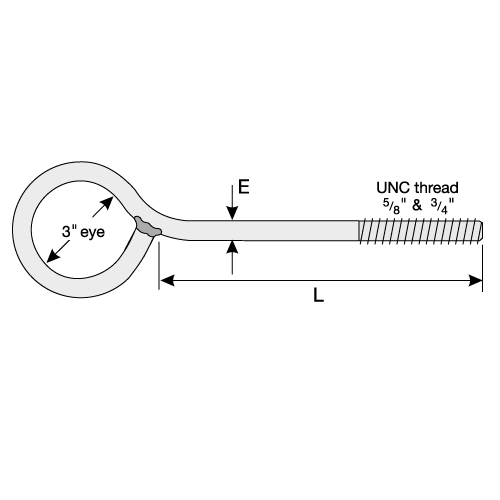

Butt Welded Eyebolt
- 44W material (60,000 psi)
- E = Ø 9/16 if 5/8"- 11 UNC thread
- Ø 11/16 if 3/4" -10 UNC thread
- L = 18" and 24" under eye
- 5/8" rated for 2,300 lbs
- 3/4" rated for 3,600 lbs
Welded Return Eyebolt
- 44W material (60,000 psi)
- E = Ø 9/16 if 5/8"- 11 UNC thread
- Ø 11/16 if 3/4" - 10 UNC thread
- L = 18" and 24" under eye
- 5/8" rated for 2,300 lbs
- 3/4" rated for 3,600 lbs

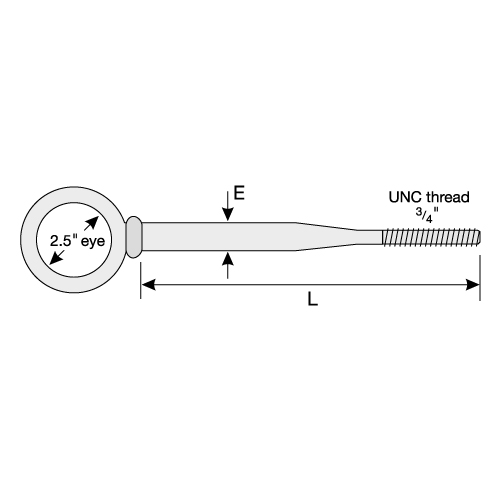

Forged Slusher Eyebolt
- Steel Alloy (90,000 psi)
- E = Ø 1-1/8"
- L = 18" and 24" under eye
- 3/4"-10 UNC thread
- rated for 9,000 lbs

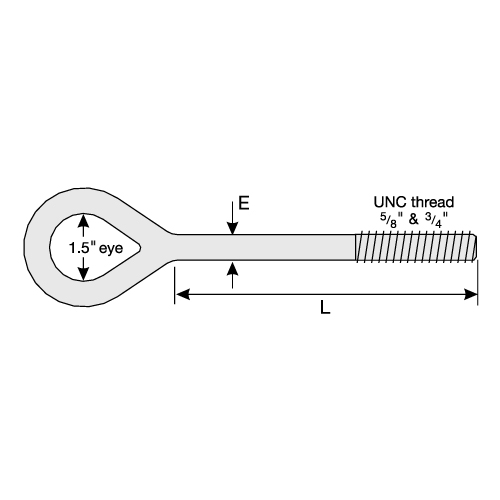

Forged Oval Eyebolt
- Steel Alloy (120,000 psi)
- E = Ø 5/8" and Ø 3/4"
- L = 12" and 18" under eye
- 5/8"-11 and 3/4"-10 UNC thread
- 5/8" rated for 4,000 lbs
- 3/4" rated for 6,000 lbs

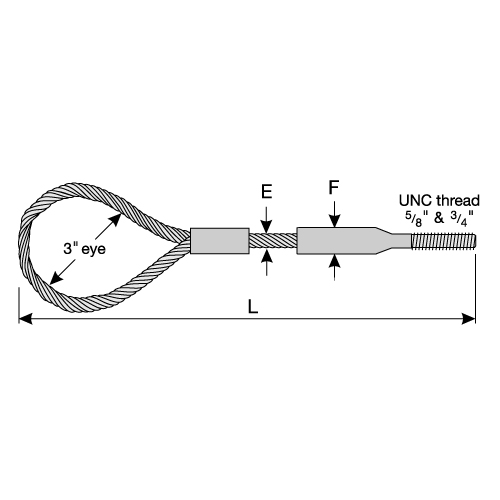

Cable Eyebolt
- E = 0.6" cable diameter
- F = Ø1-1/8" fittings, 1045 steel (80,000 psi)
- L = approx. 28" overall
- 5/8"-11 and 3/4"-10 UNC thread
- 5/8" rated for 2,100 lbs
- 3/4" rated for 2,800 lbs

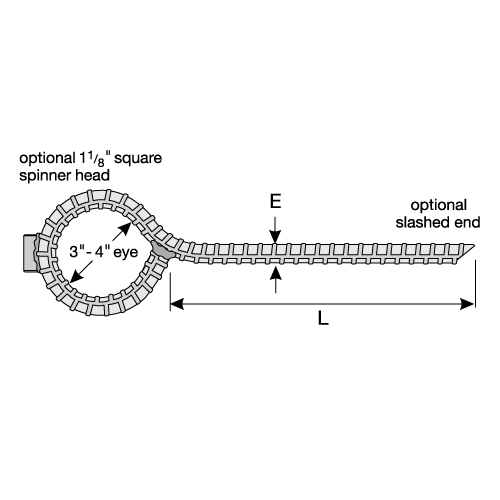

Rebar Eyebolt
- E = #6, #7, and #8 rebar (90,000 psi)
- L = 18" to 96"
- spinner head used for resin installation slashed end recommended
- butt welded (shown) or welded return

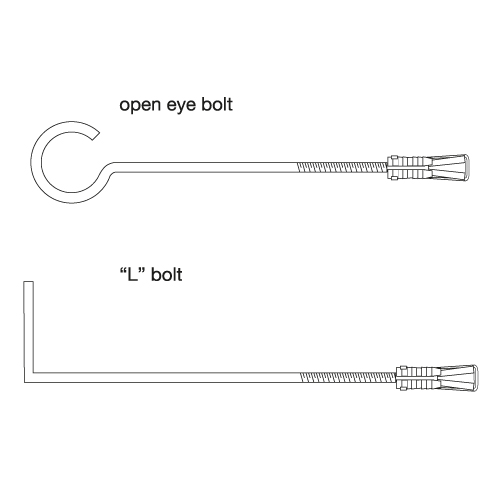

Open Eyebolt & „L“ Bolt
- DSI Underground supplies welded, bent, open, and „L“ bolts as well as custom manufacturing them to your length and threading requirements. These bolts are generally used for hanging piping, cable, and equipment.
- High strength steel. Grade 100 K.
- Bar diameteres: 5/8", 3/4", 7/8"
- Expansion shells: Included.
