Bearing Plates

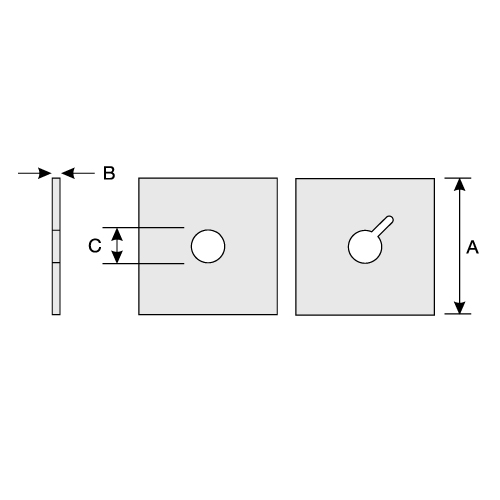

Flat Plate - for general use
- minimum A-36 material (36,000 psi yield)
- A = 4” to 12” square
- B = 1/8” to 1-1/2” thick
- C = hole diameter as required
- bent corner, grout slots & keyholes available

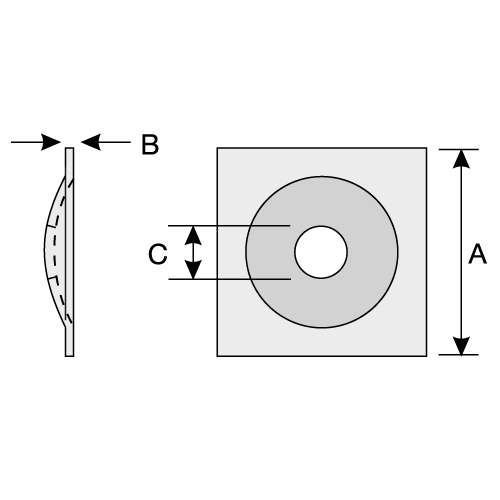

Domed Plate - use with anchornuts, cable grips or spherical seat washers
- minimum A-36 material (36,000 psi yield)
- A = 5", 6”, 8” and 12” square (rect 4" x 6")
- B = 1/4” or 3/8” thick
- C= hole diameter as required

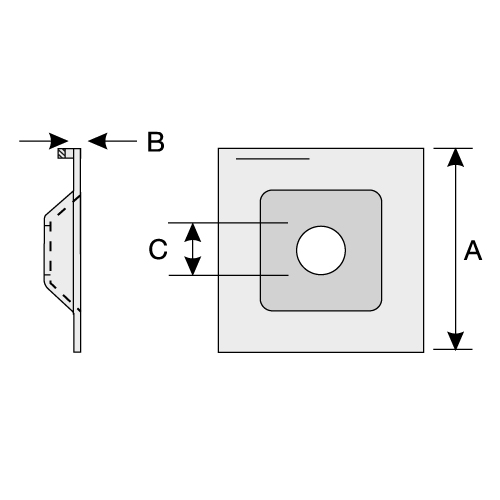

Friction Bolt Plate - for use with friction stabilizers
- minimum A-36 material (36,000 psi yield)
- A = 6” square
- B = FB-33 & FB-39: 3/16” thick; FB-46: 1/4” thick
- C = FB-33: 36mm (1-7/16”) diameter;
FB-39: 41mm (1-5/8”) diameter;
FB-46: 48mm (2”) diameter

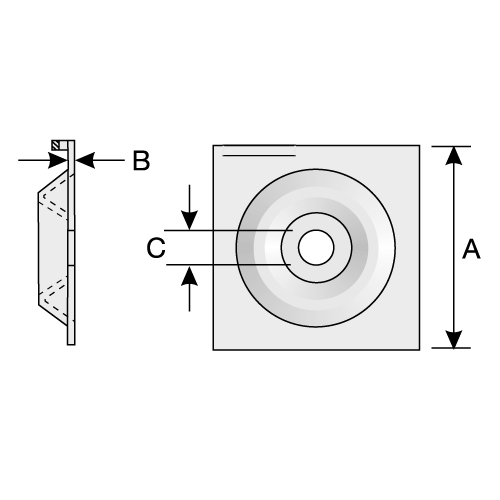

Embossed Plate (Donut plate)
- minimum A-36 material (36,000 psi yield)
- A = 6" and 8" square
- C = 13/16" to 1-1/8"
- available in Gr. 2 or Gr. 3 rating

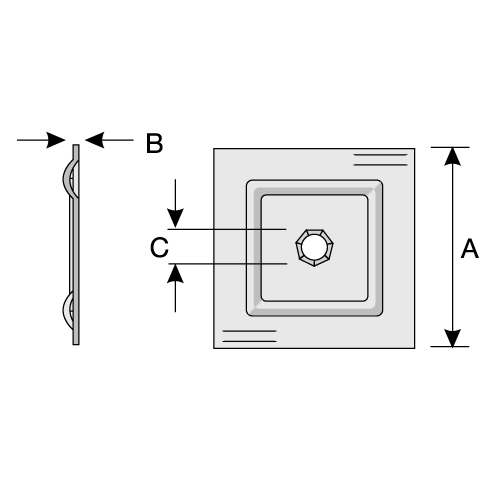

Push-on-Plate - for installing screen/mesh (for threaded bolts and OMEGA-BOLT®)
- heat treated to HRC 45 minimum
- A = 5” square
- B = 0.068” thick
- C = 5/8”, 3/4” and 7/8” available
- magnetic installation tool available

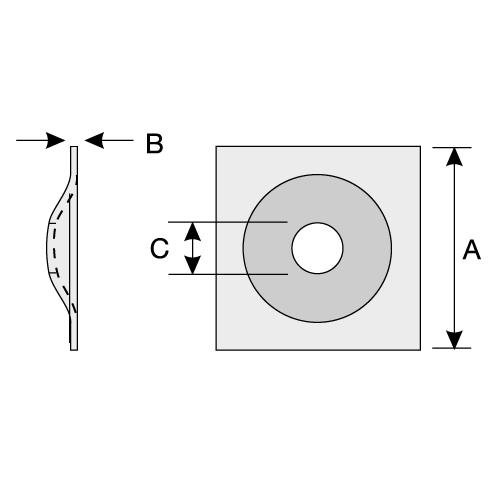

T-Dome Plate - for use with T-Dome Rockbolts
- minimum A-36 material (36,000 psi yield)
- A = 4", 5" & 6" square
- B = 1/4" thick
- C = 7/8" diameter
Custom sizes and/or galvanizing available upon request.

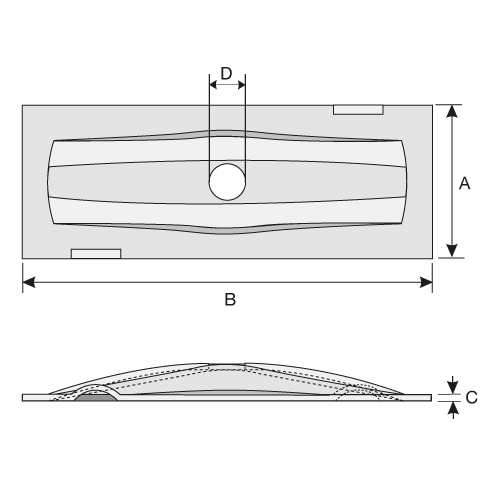

Conventional Header Plate
- minimum A-36 material (36,000 psi yield)
- A = 6"
- B = 10" and 16"
- C = grade 2 and 3
- D = hole diameter as required

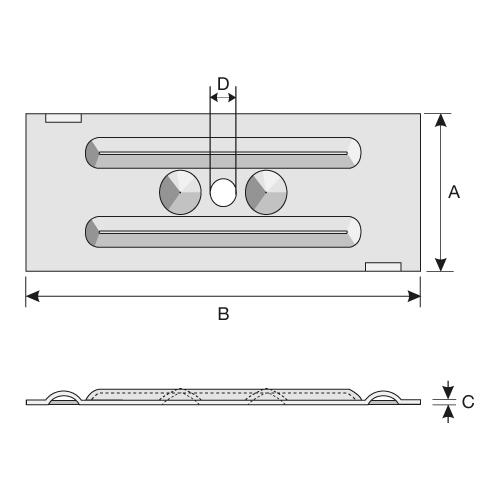

Low Profile Header Plate
- minimum A-36 material (36,000 psi yield)
- A = 6"
- B = 16"
- C = grade 2 and 3
- D = hole diameter as required
