Friction Stabilizers

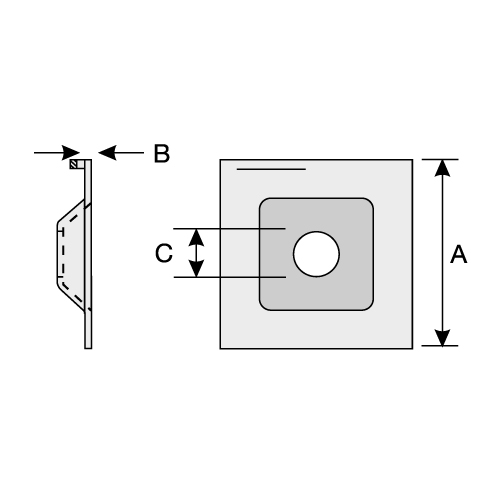

Plate Washers
- minimum A-36 material (36,000 psi yield)
- A = 6” square
- B = FS-33 & FS-39: 3/16” thick; FS-46: 1/4" thick
- C = FS-33: 36mm (1-7/16”) diameter
FS-39: 41mm (1-5/8”) diameter
FS-46: 48mm (1-7/8”) diameter

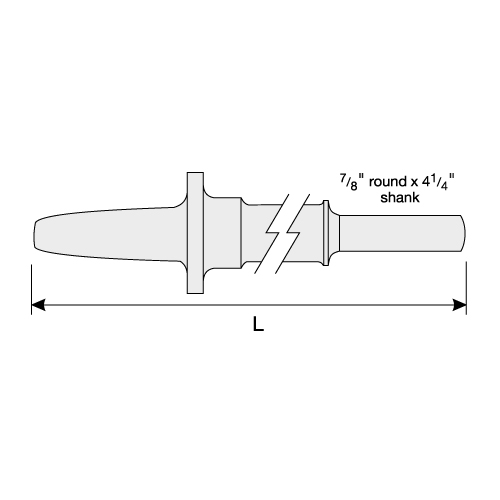

Standard Driver Tool - for stopers/jacklegs
- with 7/8” round x 4-1/4” long shanked end
- available in low profile design (9-1/4” long)
- L = FS-33: 13”, 24”, 36” and 42” overall
FS-39: 13”, 24”, 36” and 48” overall
FS-46: 13”, 24” and 36” overall

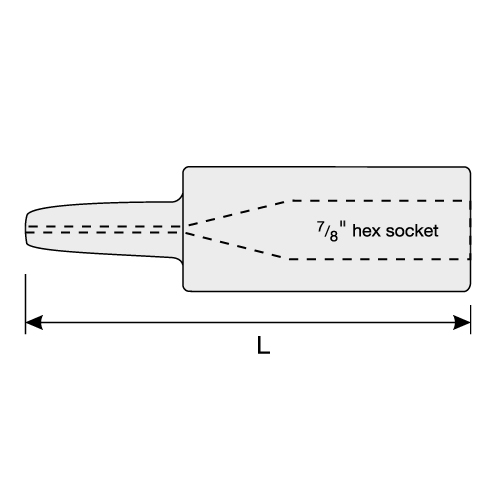

Female Driver Tool - for stopers/jacklegs
- with 7/8” hex socket
- available in 12° and 11° tapers
- L = FS-33: 9-1/4” overall
FS-39: 9-1/4” overall
FS-46: 9-1/4” overall

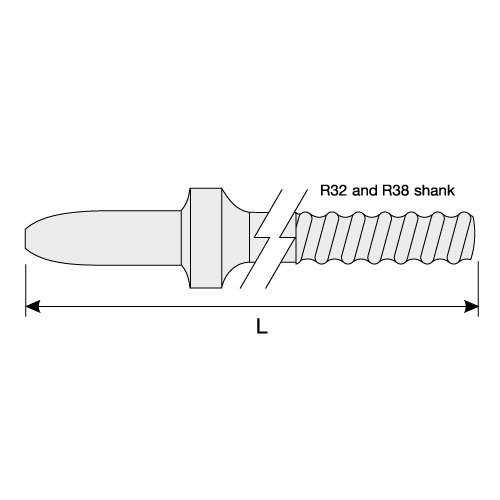

Threaded Driver Tool - for mechanized bolters
- with R32 and R38 rope thread
- available in low profile design (9-1/4” long)
- L = FS-33: 18”, 24” and 32” overall
FS-39: 18”, 24” and 32” overall
FS-46: 18”, 24” and 32” overall

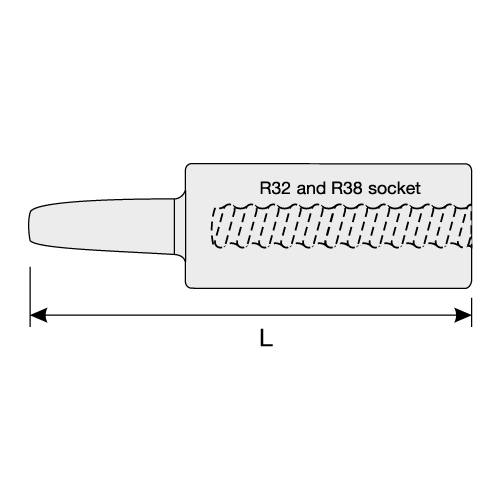

Female Threaded Driver Tool - for mechanized bolters
- with R32 and R38 rope thread
- L = FS-33: 7-1/2”, 9-1/4” and 14” overall
FS-39: 7-1/2”, 9-1/4” and 14” overall
FS-46: 7-1/2”, 9-1/4” and 14” overall
Custom sizes and/or alternate thread types available upon request
